Features:

• Throttle body mounted ECU – no extra boxes to mount
• Supports up to 650hp with Four 100 Lb/Hr Injectors!
• Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)
• Integrated ignition timing control & coil driver
• Simple Calibration Wizard (Answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
• Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
• Dual Pattern bolt on carburetor replacement, designed to fit 4150 Flange & Spread Bore manifolds - (Spread Bore Sealing Plate Part #9006 is recommended)
• No external fuel return line required!
• High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays.
• OEM Style TPS/IAC and Fuel Pressure regulator, for years of dependable service.
• Included clamp-on oxygen sensor kit ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
• Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides realtime Fuel Map Learn!

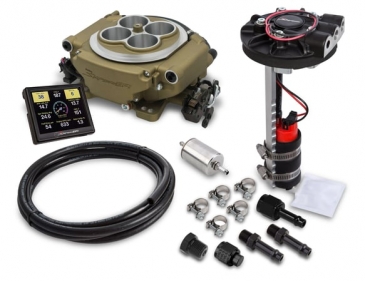

• Includes complete fuel system consisting of; Sniper EFI Retrofit Returnless Fuel Module; 20ft of 3/8” Vapor Guard Fuel Hose; 5 stainless steel hose clamps, a post filter, and various Earls fittings and caps.
• Patent Pending
• Sniper Returnless Retrofit Fuel Module
• Sniper Retrofit fuel module installs in any fuel tank from 7” to 12” deep to fit a wide variety of applications
• Internal fuel pressure regulator eliminates the hassle of plumbing an external fuel pressure regulator (Preset to 58.5 PSI)
• The low profile design is only 1.275" thick above the tank mounting surface for added clearance when needed
• The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
• The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
• Die cast aluminum construction for corrosion resistance and long lasting good looks
• ¼” NPT ports for a wide variety of plumbing options
